MinSourceCardinality (Property)
In french: CardinalitéSourceMin
HFSQL ClassicHFSQL Client/ServerAvailable only with these kinds of connection

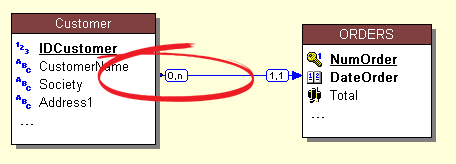

The MinSourceCardinality property sets the characteristics of a link. You can:
  • Get the minimum cardinality of the source item in the link.
  • Change the minimum cardinality of the source item in the link.
Example
// Change the minimum cardinality
LinkClub.MinSourceCardinality = 0
Syntax

Getting the minimum cardinality of the source item Hide the details

<Cardinality> = <Link>.MinSourceCardinality
<Cardinality>: Integer
Minimum cardinality of the source item.
<Link>: Character string
Name of the link defined in the data model editor or via the Link Description type.

Changing the minimum cardinality of the source item Hide the details

<Link>.MinSourceCardinality = <New cardinality>
<Link>: Character string
Name of the link defined in the data model editor or via the Link Description type.
<New cardinality>: Integer
New minimum cardinality for the source item. By default, when a link is defined programmatically, the minimum cardinality of the source item is 0.
Minimum version required
  • Version 9
