Programming by preset action
Overview
The programming by preset action allows you to describe the code of an event in a single click, by selecting an action from a list, without having to write one single line of code.
For example:
Running the click code of Button control and opening the window
Running the click code of Button control and opening the window
Initializing a component, the parameters are specified in the interface
The preset actions are proposed:
  • on Button controls (in the event "Click").
  • WINDEV on menu options.
  • WEBDEV - Server code on Link controls (in the event "Click (server)").
How to?

Defining a preset action

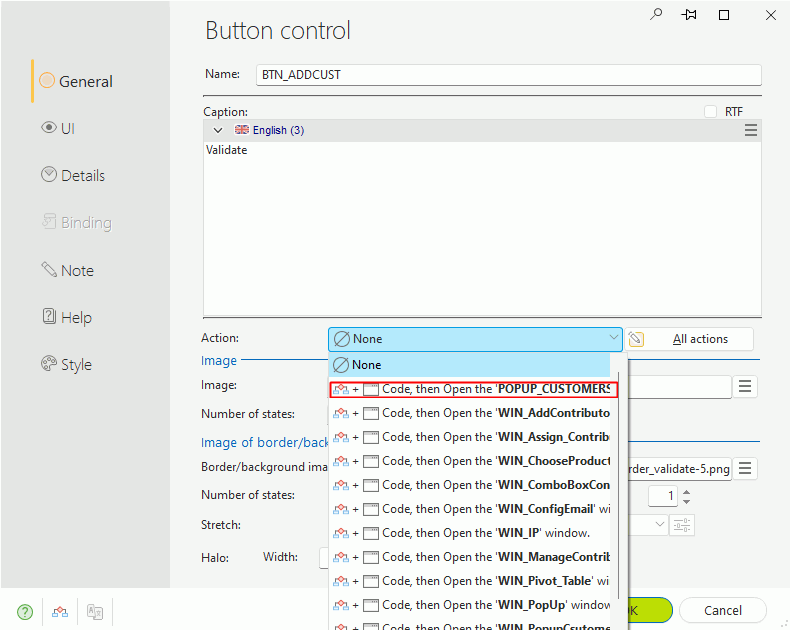

To define a preset action:
  1. Open the control description window (select "Description" in the context menu).
  2. Select the action to run in the "Action" combo box.
    The most common actions are proposed in this list. To select a more specific action, click the "All the actions" button or the "Other actions" button.
The actions proposed depend on the elements found in the current project (windows, pages, component, procedure, ...).
WINDEVWINDEV Mobile Remark: To choose the preset action, you also have the ability to select "Preset action..." from the popup menu of the control.
Note

Information displayed in the code editor

When a preset action is used, an information indicating this preset action is specified in the code editor.
For example:
Preset action in the code
Versions 16 and later
Clicking the preset action that appears in the code editor opens:
  • WINDEV the window for selecting preset actions.
  • WEBDEV - Server code Therefore, the preset action can be modified from the code editor directly.
Caution: Any WLanguage code entered in the code editor after the call to the preset action will not be run.
To include a preset action in a WLanguage code, use ExecutePresetAction.
New in version 16
Clicking the preset action that appears in the code editor opens:
  • WINDEV the window for selecting preset actions.
  • WEBDEV - Server code Therefore, the preset action can be modified from the code editor directly.
Caution: Any WLanguage code entered in the code editor after the call to the preset action will not be run.
To include a preset action in a WLanguage code, use ExecutePresetAction.
Clicking the preset action that appears in the code editor opens:
  • WINDEV the window for selecting preset actions.
  • WEBDEV - Server code Therefore, the preset action can be modified from the code editor directly.
Caution: Any WLanguage code entered in the code editor after the call to the preset action will not be run.
To include a preset action in a WLanguage code, use ExecutePresetAction.
WINDEVAndroidJava

Running a preset action through programming

WINDEV also allows you to run a preset action by using ExecutePresetAction.
Minimum version required
  • Version 11
