Overview
The wizard for creating iPhone windows allows you to easily create a window containing all main elements of a window for an iPhone application.
These different elements can be added at any time into the window.
You can also configure different options in the window description.
The different steps of the wizard

Window orientation

Several options are available:
These options can be modified in the editor, in the "Details" tab of the description window ("Orientation").
You also have the ability to specify whether automatic scrollbars must be displayed. The scrollbars will be automatically displayed if the size of the window is greater than the resolution of the screen on the device used.

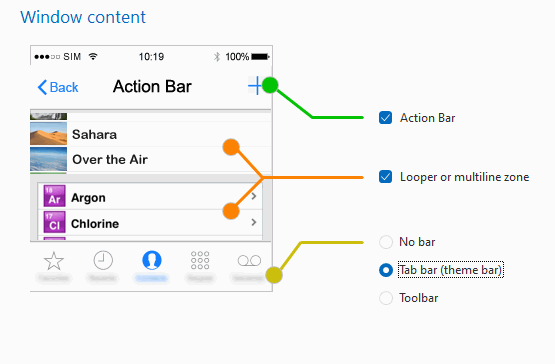

Window content

You have the ability to create a window:
  • with navigation bar. This bar allows the user to close a window via a "Close" or "Back" button for example.
    To add a navigation bar into a window: 0
  • with a looper or a multiline zone. This type of window is used to configure one or more options, to select an option, ...
  • with a Tab bar. In most cases, a "Tab bar" is used to access the different windows of the application.
    To add a tab bar into a window: 0
  • with a toolbar. In most cases, the toolbar is used to perform actions on the current window.
    To add a toolbar into a window: 0
Difference between a tab bar and a toolbar:
  • A toolbar proposes actions on the current view.
  • A tab bar corresponds to tabs.

Configuring the looper or the multiline zone

If you have chosen to create a window with looper or with multiline zone, the different wizard planes allow you to configure this element.
  • Several types of preset loopers or multiline zones are available:
  • The following plane is used to configure the elements displayed in the looper or in the multiline zone.
  • Versions 18 and later
    For a looper, you have the ability to choose how the looper will be filled (programming, file link, variable link).
    New in version 18
    For a looper, you have the ability to choose how the looper will be filled (programming, file link, variable link).
    For a looper, you have the ability to choose how the looper will be filled (programming, file link, variable link).
When the wizard is validated, the selected looper or multiline zone is automatically created in the window.
You have the ability to type the code used to handle it and to make it operate.
In the case of a repeatedzone, the main WLanguage events to be modified are as follows:
  • Looper control initialization code: this event is used, for example, to fill the looper.
  • Row selection code: this event is used to manage the actions performed when the user clicks the standard arrow.
  • Click code of IMG_Disclosure image: this event is used to manage the click on the custom bullet.
For more details, see:

Tab bar or toolbar

If this option was selected, specify the parameters of the bar:
  • Color,
  • Style,
  • Buttons displayed.
At the end of the wizard, the window is created with the specified bar. All you have to do is enter the code of the buttons.
Minimum version required
  • Version 17
