Sliding window (sliding menu)
The sliding windows (also called sliding menus) are often used in the mobile applications.
The characteristics for using this type of window are as follows:
- The sliding window can appear from the left or from the right of screen.
- The sliding window can be partially displayed above the previous window or it can partially shift this window.
A typical use for this type of window is the display of a list of choices or the configuration of an application.
WINDEV Mobile allows you to display this type of window:
Caution: Sliding windows can only be used with maximized windows.
How to propose sliding windows?
Creating internal windows
The sliding windows are internal windows.
This internal window has the following characteristics:
Defining the sliding windows associated with a window
To define the sliding windows associated with a window:
- Open the "Details" tab in the description window of main window.
- Select the internal windows that will be displayed as sliding windows:
- In the "Left sliding window" (or "Right sliding window") area, specify:
- the internal window to display. The different internal windows of the application are proposed when expanding the list.
- the width of internal window.
The width of sliding window can correspond to:
- the width of internal window. In this case, leave the "Width" control empty.
- a percentage of the main window. In this case, the anchors defined in the internal window will be applied. No horizontal scrollbar will be displayed.
- The height is fixed by the height of the internal window. A vertical scrollbar will be displayed if the height exceeds the height of the screen.
- You have the ability to use WinUsefulSize to define the useful size of the sliding window.
- the display mode of the internal window:
- If "Swipe" is checked, the sliding window will automatically appear during a user action.
- If "Swipe" is not checked, the sliding window will be displayed:
- through programming (WinSlidingVisible),
- by the action bar.
- the opening effect of sliding windows. Three modes are available:
- Cover: the sliding window covers the content of the main window.
The Action Bar of window is also covered.
- Push: the sliding window pushes the content of the main window,
- Uncover: the sliding window reveals the content of the main window.
In any case, the main window remains inaccessible. A click on the main window will close the sliding window.

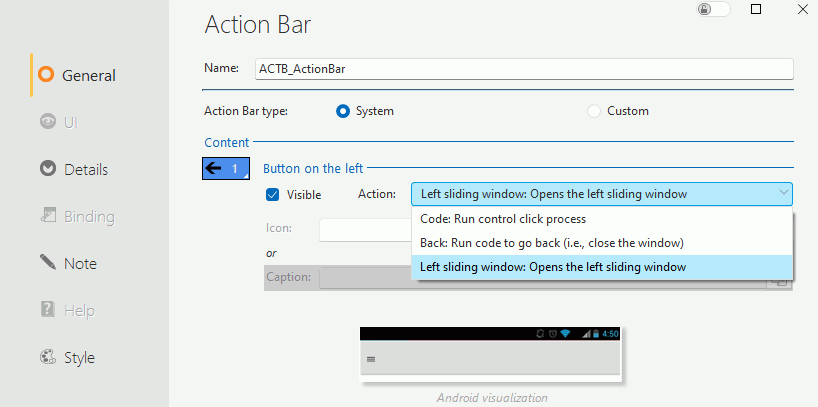

Opening a sliding window via the Action Bar
When a window contains an Action Bar and is associated with a sliding window, clicking the icon of the Action Bar opens the sliding window.
